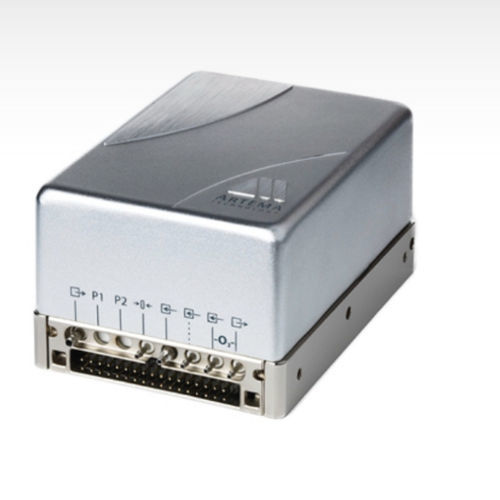

Anesthetic gas analyzer AION™

multigasfor anesthesia workstations

AION™ Platinum is a range of sidestream multigas analyzers aimed at low to high-end respiratory gas measurement applications and is available in a number of different configurations. Key features: NDIR side stream gas analyzer Integrated paramagnetic oxygen sensor or interface to fuel cell oxygen sensors Calculates inspired and expired concentrations of all gases Generates up to five simultaneous waveforms Fast warm up (ISO specification within 45 seconds, full accuracy within 10 minutes) Flow controlled gas sampling pump, 70-200 ml/min user selectable gas sampling flow RS232 host interface Small size 72.1 x 100.5 x 52.5 mm Low power consumption (typically less than 2.9 W) Market leading reliability, proven MTBF greater than 40.000 h. Connects directly to DRYLINE™ & DRYLINE™ II water trap systems and OXIMA™ Galvanic Oxygen Sensor or SPIRIT™ Respiratory Mechanics System.
