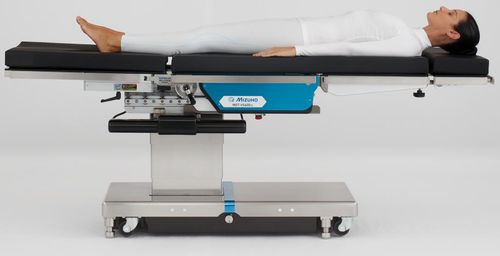

Universal operating table MOT-VS600 seriesorthopedycardiologyelectric
Add to favorites
Compare this product
Characteristics
- Applications
- universal, orthopedy, cardiology
- Operation
- electric
- Features
- Trendelenburg, mobile, adjustable height
- Number of sections
- 3-section
- Length
500 mm
(19.7 in)- Width
2,124 mm
(83.6 in)- Height
Max.: 1,060 mm
(42 in)Min.: 520 mm
(20 in)- Weight
390 kg, 400 kg
(859.8 lb, 881.8 lb)- Maximum load
360 kg, 450 kg
(793.66 lb, 992.08 lb)
Description
The MOT-VS600 series possess excellent accessible functions for imaging which ensure adequate sliding ranges. In addition, DK and DHK models are standardly equipped with motorized Kidney Bridge.
Lateral tilt - Right 35°Left 35°
Trendelenburg - Head up 30°
Head down 40°
Back section - up to 90°
down to 40°
Leg plate down / open - 90°/ 90°
Flexing / Reflex angle - 220°/ 90°
Kidney Bridge - DK/DHK: 150mm
