Modular shelving unit Interlocking

for container storagefor basket storagefor pharmacies

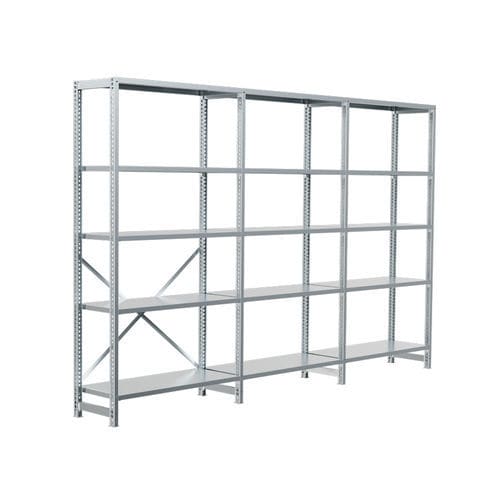

The modular, interlocking, galvanised shelving system can also be integrated with existing shelving. The modular nature of this system, together with the fact that it is supplied disassembled, allows maximum optimisation and savings in transport. The Procoss upright features classic truncated-cone slots which engage the Proclip through their paired. Purpose-developed V-interlocks guarantee seamless interconnection. In the basic system, the end frames with Proclip and the shelving, together with the base plinth and the rear cross braces, offer perfectly balanced tensile and compressive properties which guarantee robustness, stability and durability. Certified quality for our galvanised shelves made from steel certified to the highest quality standards. Sidewall The side is composed of U-shaped cold-profiled uprights with truncated slots connected by interlocking U-shaped crossbars; the feet are made of metal and are also interlocking. The height of the side panels is 25 mm, which guarantees maximum flexibility in positioning the shelves. Shelves A wide range of sizes and capacities for every need produced from 8/10 skinpass Zn 100 sheet metal with a polished surface.
- Depths of 300, 400, 500 and 600 mm.
- Length 970 and 1230 mm - Load capacity from 100 to 300 kg by insertion of omega reinforcements. Cross bracing The cross bracing is an essential stabilising element consisting of two shaped profile rods to be cross-mounted and bolted onto the uprights. Possibility of expansion Thanks to the Procoss system, even the simple galvanised shelving unit can be expanded in a modular manner to create even more spacious and stable shelving.
