Supply column MS 1054

wall-mountedintensive carewith column

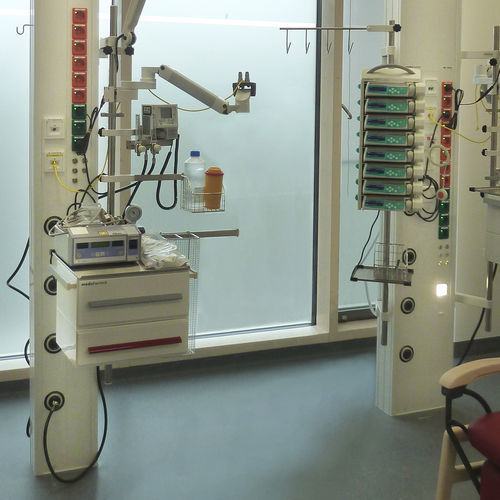

With our MS 1054 media column which can be installed freestanding in the room, we offer you a flexible system for all room situations in which wall-mounted supply systems are out of the question. The core of the system is a compact media column which is firmly anchored to the floor and ceiling and in which all required media accesses such as medical gases, high voltage current, data and communications technologies are integrated. The optionally available accessories make the MS 1054 a multi-purpose and flexible treatment station. Side-mounted stainless steel tubes incorporate infusion bottle holders, lighting elements and other aids. But storage consoles and drawer pull-outs can be installed at any height you want – ideal for every work situation and always exactly where they are required in the room. TECHNICAL DATA Electric specifications Nominal voltage: 230 V - 240 V / 50 Hz - continuous operation Protection class: I Protection type: IP 20 Lighting technology LED downlight (optional) Nominal voltage: 95 V – 260 V / 50 – 60 Hz Protection class: II Operating type: electronic converter (1-3,6 W) Lamp output: 1 W Protection type: IP 20 Operating pressure of medical gas technology Oxygen: 5 bar Compressed air: 5 bar Vacuum: - 0,8 bar Laughing gas 5 bar CO2: 5 bar AGSS: 5 bar General information Media current feed: From the top Optional support tubes: Side-mounted, rigid or swivel Total additional load: Max. 160 kg
