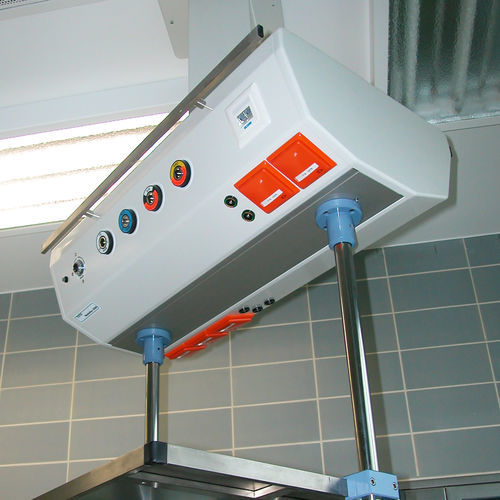

Medical pendant DVE 5500

ceiling-mountedoperating room

With DVE 5500 modul  technik presents a ceiling supply unit which can adapt to every working and room situation. The compact and connection-ready design which can be equipped in any combination with high voltage and low voltage current, communications and data connections and medical gases, is the winning factor for this supply unit. However, the particular strengths of the DVE 5500 are in its versatility, be it in its horizontal or vertical design, rigid mounting or rotation up to 330°. Whether as a pure supply unit equipped with carrier tubing for medical apparatus and storage with drawer blocks, DVE 5500 is always focused on your needs and requirements and never vice versa. TECHNICAL DATA Electric specifications Nominal voltage: 230 V - 240 V / 50 Hz - continuous operation Protection class: I Protection type: IP 20 Operating pressure of medical gas technology Oxygen: 5 bar Compressed air: 5 bar Compressed air: 8 bar Vacuum: - 0,8 bar Laughing gas 5 bar CO2: 5 bar AGSS: 5 bar Air-Motor: 8 bar General information Media current feed: From the top in the support columns Total additional load of supply unit: Project-related Rotatable option: By 330° Location of supply unit: Horizontal or vertical
