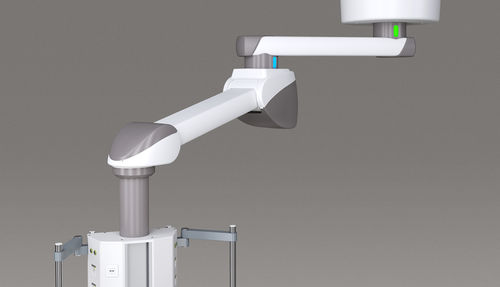

Medical pendant moduversa HM plus

ceiling-mountedoperating roomarticulated

Just as moduversa HM, the motorised HM plus also has the soft start system for a smooth positioning in the room and the LED-supported electromagnetic braking system. Thanks to its second horizontal arm moduversa HM plus offers even more flexibility in the exact positioning of the BSP 2500 supply head. More flexibility is not possible, especially since the maximum operating radius is approximately 2.6 metres around the ceiling mount. Despite the additional joint, the maximum load capacity is more than sufficient for numerous medical devices, monitors, work tables and drawer blocks. And by the way, all products in the moduversa range have been designed so they also retain their respective position in the event of power failures and can even be positioned by hand. On request moduversa HM plus can also be configured as a tandem system or combined with other models in the moduversa range. TECHNICAL DATA Electric specifications Nominal voltage: 115 V - 240 V / 50-60 Hz - continuous operation Protection class: I Protection type: IP 20 Lighting technology indirect RGB lighting Nominal voltage: DC 12 V Available design option: From 800 mm arm length (upper extension arm) Operating pressure of medical gas technology Oxygen: 5 bar Compressed air: 5 bar Compressed air: 8 bar Vacuum: - 0,8 bar Laughing gas 5 bar CO2: 5 bar AGSS: 5 bar Air-Motor: 8 bar General information Media current feed: From the top in the support arm Braking system: Electromagnetic (optional compressed air) Comfort option: Braking system with BrakeGuide* (optical feedback) Total additional load of supply unit: Project-related Height-adjustment: Electric motor
