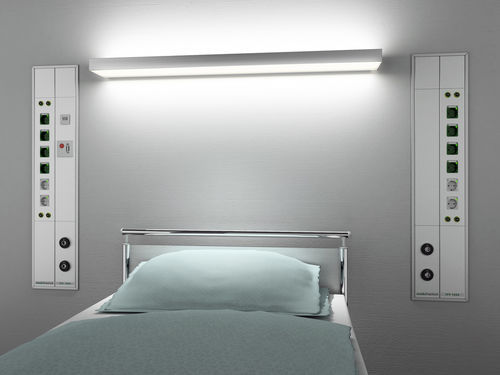

Wall-mounted bed head unit IVV 1054 UP

horizontalverticalfor patient rooms

New hospital buildings in particular enable the planning freedom to provide wall flush-mounted medical supply systems. However, the benefits of IV 1054-UP are not only demonstrated in its small footprint and in its elegant aesthetics of this only 90 mm deep flush-mounted modules. Whether medical gases, electricity, data and communications technologies or single, double, triple or four channel versions – everything is possible. And everything is very transparent, easily accessible and very easy to clean. Our accessories programme also offers several appropriate room lighting solutions. We will be pleased to find the right lighting solution for you. And what‘s more, the system can also be considered for conversion or refurbishment projects since the particularly flat design only requires an approx. 100 mm thick lightweight front-wall structure, behind which are concealed the cables and connections to the available media supply units. We will be pleased to advise you. TECHNICAL DATA Electric specifications Nominal voltage: 230 V - 240 V / 50 Hz - continuous operation Protection class: I Protection type: IP 20 Operating pressure of medical gas technology Oxygen: 5 bar Compressed air: 5 bar Vacuum: - 0,8 bar General information Media current feed: Rear Number of media channels: One to three
