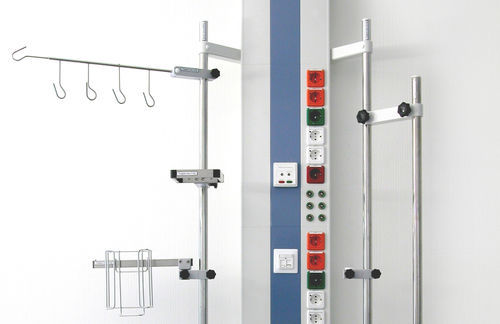

Wall-mounted bed head unit IVV 1054

verticalfor patient rooms

Sometimes narrow room dimensions limit the options for the use of horizontally arranged supply systems. So this where IVV 1054 lends a hand with a change of perspective. Rotated by 90 degrees, this vertical supply unit provides optimum patient care in the smallest of spaces. Arranged one above the other, the tapping points for medical gases, high and low voltage current and data and communications technologies can be designed as single, double, triple or four channel versions depending on your requirements. But there‘s still more. Apparatus and accessories such as infusion bottle holders or examination lights all have their place on the IVV 1054 thanks to the stainless steel support arm fixed on the side making bulky apparatus trolleys or infusion stands superfluous. As a result you not only gain space but also provide optimum working conditions for doctors and nursing staff. modulux pure enhances the system as a matching lighting solution which like the IVV 1054 can be provided in electrostatically powder-coated variants in all RAL colours TECHNICAL DATA Electric specifications Nominal voltage: 230 V - 240 V / 50 Hz - continuous operation Protection class: I Protection type: IP 20 Operating pressure of medical gas technology Oxygen: 5 bar Compressed air: 5 bar Vacuum: - 0,8 bar General information Media current feed: Rear or from top Optional support tubes: Side-mounted, rigid or swivel Number of media channels: One to three Total additional load: max. 100 kg/m
