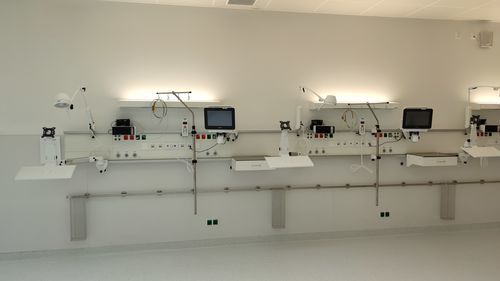

Wall-mounted bed head unit IV 1054

horizontalfor intensive care servicefor dialysis centers

The benefits of the IV 1054 can be briefly summarised as follows – a clear design which can be equipped with all the media required for intensive care and the recovery room and which is robustly finished and mounted connection-ready and with a media feed-in at a central input point. In the same way as all modul  technik products, IV 1054 offers maximum flexibility through a wide-ranging accessories range. Apparatus carrier systems and equipment rails enable a very accessible, space-saving and transparent installation of all apparatus, infusion and lighting elements. However, there is also the option to order the system in single, double, triple channel versions. In all variants the media are physically separated from each other by a multi-chamber system which increases the functional safety. We plan medical gases, high voltage current, data and communications technologies according to your needs. modulux pure is the ideal enhancement as a lighting solution. And we are pleased to take your design wishes into account. We design the screw-free and thereby safe and hygienically designed aluminium surfaces to be either anodised or electrostatically powder-coated in any RAL or NCS colour. TECHNICAL DATA Electric specifications Nominal voltage: 230 V - 240 V / 50 Hz - continuous operation Protection class: I Protection type: IP 20 Operating pressure of medical gas technology Oxygen: 5 bar Compressed air: 5 bar Vacuum: - 0,8 bar CO2: 5 bar AGSS: 5 bar General information Media current feed: Rear, from top or side Optional equipment rail: Above and below Material of optional equipment rail: Stainless steel or aluminium Number of media channels: One to four
