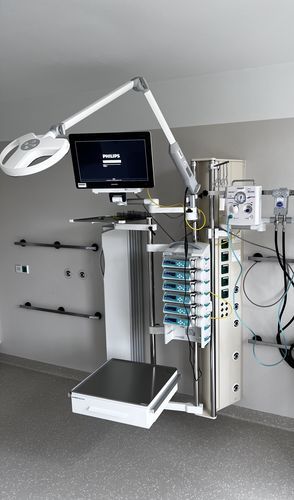

Wall-mounted bed head unit IME 1500

verticalfor intensive care servicewith light

Working at patients‘ beds in emergency admissions, intensive care and also in intermediate care, requires easily accessible media connections, which enable fast and ergonomic apparatus and medication changes. The smart solution of the vertically designed IME 1500 and IME duplex is that they meet your staff as they “stand out” at an angle from the wall. Both systems can be equipped with medical gases, high voltage current, data and communications technologies according to your specifications. Whereas the IME 1500 connections are one-sided, on the side opposite to the patient‘s bed, IME duplex has two media sides and can therefore be placed in the middle between two patient beds. The comprehensive range of accessories of stable stainless steel support tubes and matching apparatus carriers, lighting elements and attachments for infusions, makes the IME range a compact and multi-purpose supply system for many areas of application. We plan the equipment for IME systems on an individual basis and adapt it to the respective area of application. TECHNICAL DATA Electric specifications Nominal voltage: 230 V - 240 V / 50 Hz - continuous operation Protection class: I Protection type: IP 20 Lighting technology LED downlight (optional) Nominal voltage: 95 V – 260 V / 50 – 60 Hz Protection class: II Operating type: electronic converter (1-3,6 W) Lamp output: 1 W Protection type: IP 20 Operating pressure of medical gas technology Oxygen: 5 bar Compressed air: 5 bar Vacuum: - 0,8 bar AGSS: 5 bar General information Media current feed: Rear or from top Additional load IME 1500: Max. 80 kg Additional load IME duplex: Max. 160 kg
