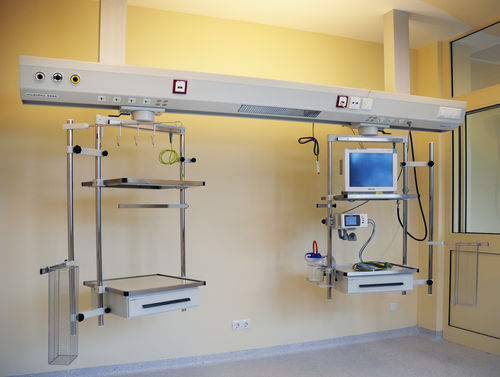

Supply beam system moduflex 2500

ceiling-mountedintensive careheight-adjustable

Because all media and apparatus attachments are fed from above, it enables optimum freedom of movement and perfect floor hygiene at the patient place. Media are fed through ceiling columns which have a rear inspection opening. The tapping points for high and low voltage current, medical gases and other media are installed in the ceiling bars. The patient place is connected via the GW 2500 and IW 2500 apparatus carrier systems. Maintenance costs are also minimised through the rigid tubing up to the tapping points for medical gases. We offer a wide equipment and accessory programme to match moduflex 2500 which allows the design of the entire work area to be customised. This includes catheter baskets, various examination lights, extension arms and drawers. The system is also equipped with a lighting solution for indirect room lighting and a reading light. GW 2500 The GW 2500 apparatus trolley is used as a carrier system for moduflex 2500 and the OP 3800 media bridge. Medical apparatus can be freely positioned along the height-adjustable consoles. The trolley is continuously braked by a manual friction brake. IW 2500 The IW 2500 infusion trolley is the slim brother to the GW 2500 and incorporates all necessary equipment and accessories for infusion supplies. TECHNICAL DATA Electric specifications Nominal voltage: 230 V - 240 V / 50 Hz - continuous operation Protection class: I Protection type: IP 20 Lighting technology Nominal voltage: 230 V - 240 V / 50 Hz Protection class: I Connection type: Plug connection Connection cross-section: 1.5mm² max.
