Supply beam system Optima

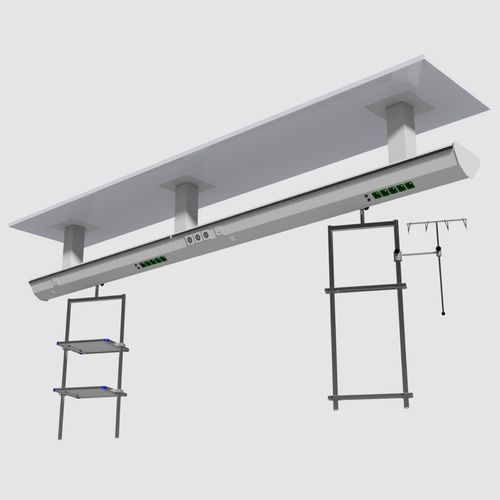

Optima consists of vertical beams which fix the construction at the ceiling and a horizontal supply bar. The vertical beams are usually fixed at the raw ceiling by means of a sub-construction. The beams house the connection points for electrical and gas main supplies whereby here the supply lines are installed apart from each other. The supply bar consists of a massive, extruded anodized aluminium support frame combined with a front- and/or backside housing for gas- and electrical outlets. An optional accessory rail at the front-side can accommodate a variety of devices like (bed separation systems, Infusion poles, cable arms). Indirect lightning solutions can be integrated into the ceiling faced cover. Due to the lack of flexible gas tubing, the concept of this supply unit is nearly maintenance-free and offers upgrade options for a steadily growing device-park. The described support profile provides an under-side guide rail for the accommodation of trolleys, where customised device carriers can be attached. The device carriers are rotatable and can be moved along the whole supply unit. The trolleys are fixed at their position by means of a manual brake. The ceiling supply unit is deliverable in different lengths; for lengths longer than 3000 mm the profiles are joined. All our ceiling supply units are designed and equipped according to customers specifications. Standard-colour of our supply units is RAL 9016. All other colours are also available (surcharge). For ICU, a housing for media outlets can either be at the front side only or, in addition, at the back side as well.
