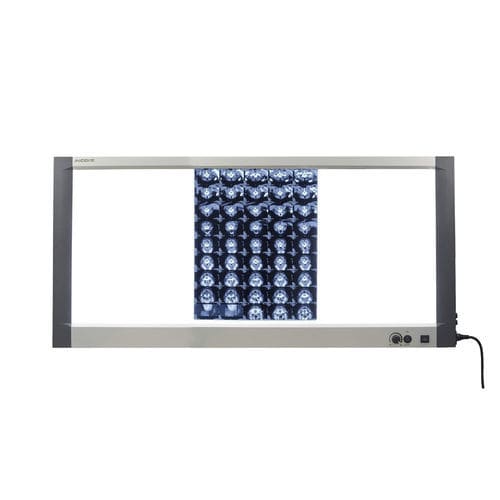

3-screen X-ray film viewer MG-03X

white lightwith switchdental

LED Medical X Ray Film Viewer Negatoscope - MG03X This sereis X-ray Film Viewer is mainly suitable to view all sezes of X-ray Film, CT Film,DR Film and other Imaging Films in hospital, Sclinics, Colleges & Insitutes. It is Convenient to the Professional for diagnosing, Analysing the imaging & scholarly communications. 1) Triple Panel 2) Screen SIZE L*H(mm): 1110*440 3) Outer SIZE L*H*W(mm): 1227*545*24 4) Max. Power(W): 90W 5) LED Specification: CCT >10000K; Lifespan >100000H 6) View Panel Luminance: PWM Dimming System, can be modulated range from 1% to 100% continuously, Luminance: 250-6500cd/m2 7) Optical Scattering Coefficient: >0.7 8) Even Illuminating, Coefficient Uniformity: >0.9 9) Continuously Working: >24H 10) The Viewer is Lit within 10s, The Stability of Luminance: <15 Minutes 11) Nose: <40Db 12) After 1 Hour Working, The Temperature On Outersurface: <60℃ 13) The Frequency Of Regulator: DC12*(1±5%)V, 30kHz-100 kHz 14) Sensor Available ,brightness adjustable with knob M series products overcome the shortcomings of the previous generation products such as low illuminance, poor contrast, poor uniformity, fast attenuation, and short life span, and are widely used in various medical testing industries.
