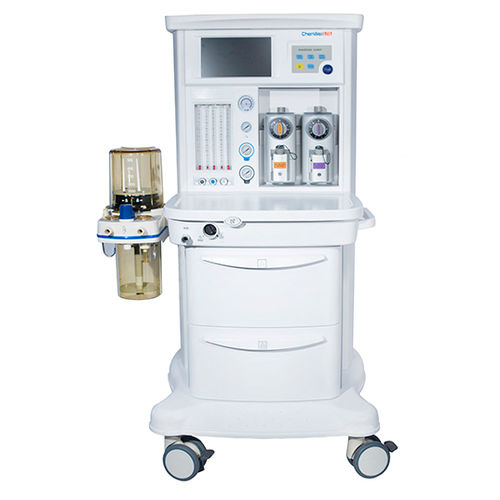

Pediatric anesthesia workstation CWM-301D

trolley-mountedwith respiratory monitoringwith ventilator

• Integrated breathing circuit with APLvavIe, excellent tightness. • Replacing drive bellow is NOT required when operating Adult/ Pédiatrie anesthesia. • Easy to operate, user friendly. • Applied with 2 high-precision.(selectatec) • 10.2 inch colour LCD screen with no dead space. • Real-time detection for loops, Paw, BPM, VT and compliance. • Comprehensive monitoring capabilities include Ventilation parameters monitoring. Technique Specifications Physical specficaticns Dimensions 70*85*140 Weâght 65 kg Casters Front wtieels with lock Screen -LCD Display - 10.2 inch Application: Patient range Adulut Pediatric Lanauage - ENGLISH Pipeline supply Gas configuration : O2,N2O,Air Pipeline input range: 280-600Kpa Working specifiations: Power - AC 220V±10%. 50Hz±2% Current - 500mA max Battery Power : Battery type - Lead-acid 12V. 4Ah Run-time - Typical 30 mins+. up to 2 hrs Modes of Ventilation VCV - Volume control ventilation SIMV - Synchrcn zed Intermittent Mandatary Ventilation MANUAL - MANUAL SIPPV (A/C) - Synchrcnzed Intermittent Positive Pressure Ventilation PCV - Pressure control ventilation Stand-by - STAND-BY Ventilator parameter Working type - Electrcnically controlled. pneumatic driven Tidal volume range - 20-1500ml Pressure range - 5-60 cmH2O Respiration rate range - 1-1 CmH2O (1-40 bom under SIMV) PEEP range - 4:1-1:8 PEEP range - OFF. 3-30 CmH2O (Optional) Ptrigger Range - 20-20 cmHsO (under PEEP) Minute volume range ->18L/Min SIGH range - 0-5/100 System standard - Hypoxic guard system - N2O cut-off valve. O2 concentration >25% Safety valve - <12.5kPa O2 Rush - 25-75Umin Volumne of CO2 absorber - 2.4L (double layer. 1.2L each)
