Medical valve

solenoid

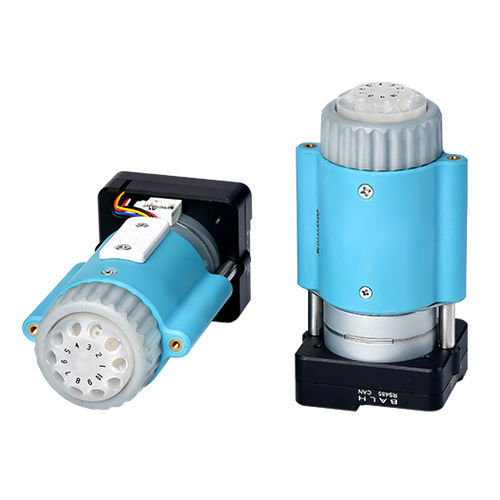

Two-Position switching valve was designed with 6, 8, 10 ports of multiple fluid channels. This fast switching solenoid valve is programmable controlled via communication RS232/RS485/CAN by a maintenance-free stepper motor driving system, small layout make it very popular in laboratory bench-top devices or medical miniaturized systems. Runze is a professional switching valve manufacturer and supplier, we are able to offer various fluid control equipment. If you want to know more, please contact us now! Orifice - 1.2mm Wetted material - PCTFE, Sapphire Port configuration - 6/8/10 port Dead volume - 5.4μL Air pressure - 0-0.5Mpa Water pressure - 0-0.6Mpa Origin detection - Auto reset to initial position when powered on (optional and settable) Liquid temperature - 0-150℃ Connection - 1/4-28UNF Replaceable parts - Stator replaceable, sealed rotor irreplaceable Transposition - Random start to any specific port Driver - Non-optional Valve drive - ≤400ms Max. torque - 1.6N/m Communication- RS232, RS485, CAN Baud rate - RS232/RS485: 9600bps, 9200dps, 38400dps, 57600dps, 115200dps CAN: 100Kbps, 200Kbps, 500Kbps, 1Mbps Address & Parameter setup - Communication interface Power supply - DC24V/1.0A Max power - 15W Operating temperature - 0℃-50℃ Operating humidity - <80% relative humidity, non-condensing Dimension (L*W*H) - 63.7*50.4*115.2mm Net weight - 0.437KG
