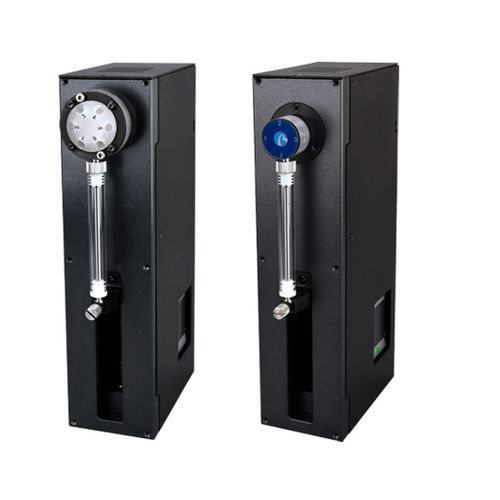

Industrial syringe pump SY-03B

1-channelcontinuous

SY-03B microfluidics syringe pump works for continuous liquid delivering from microliters to milliliters in very high accuracy. The electric syringe pump can provide syringe varies from 25μL to 50ml while valve from 3 port to 15 ports in different flow configurations to meet a variety of applications. RS232/RS485/CAN communication programs make it possible to realize many different flow dispensing requirements. Model Numbers of Microfluidic Syringe Pump SY-03B is a micro-syringe pump with extraordinary-precision in the series of high-end products developed by Runze Fluid. Accommodates distribution valves and syringes in a variety of configurations. Transfers liquid in high precision which can meet most users' requirements. Can be used in series with multiple pumps.Fully programmable pump module with open framework, which handling fluids from microliters to milliliters with extraordinary accuracy and precision. With functions in automatic pipetting, dilution and dispensing. Controlled by an external computer or microprocessor. Accuracy - ≤1%@100% stroke Precision (Repeatability) - 0.3%~0.5%@100% stroke Rated stroke (control steps) - 60mm(6000 steps standard mode; 48000 steps micro-step mode) RPM Range - 0.1rpm ~600rpm Linear speed - 0.01mm/s ~ 60mm/s(media: water ; 1 rated stroke=one time) Running time (per rated stroke) - 1s ~ 6000s(media: water ; 1 rated stroke=one time) Resolution - 0.01mm (per step) ILS Syringe - 25μl, 50μl, 100μl, 250μl, 500μl, 1ml, 2.5ml, 5ml, 10ml, 25ml Valve Model(available) - M01、M02、M03、M04、M05、M06、M07、M08、M09、M10 Wetted material - Borosilicate glass, PTFE, Sapphire, PCTFE Max. Pressure Rating - 0.7Mpa Actuator - Trapezoidal screw (Lead 6mm/1mm) Connection - 1/4-28UNF
