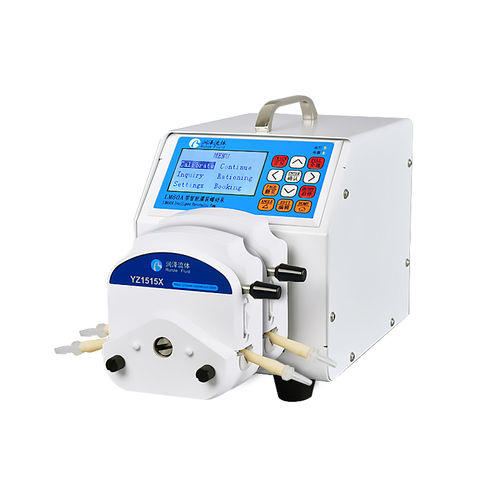

The peristaltic metering pump is an intelligent digital precision peristaltic pump that is able to preset dispensing volume, dispensing time, cycle times, waiting time to process a regular filling procedures, LED screen will show some important parameters of what pump is working on, foot pedals are optional to freedom your hands in labs or surgeries.
Metering Mode of Peristaltic Tubing of Peristaltic Metering Pump
a. Continuous mode - For continuous liquid transfer with no specific requirements
b. Rationing Mode - Realize one-off liquid dispensing in a specific volume
c. Booking Mode - Realize liquid dispensing in a specific volume at N times
d. Calibration Mode - Proceed calibration model before starting any other working model to ensure high accuracy of the test result
Motor type - Stepper motor
Pump Roller
YZ/SN: SST 3 /6 rollers
RZ1030: POM 4 rollers
RZ1030B: POM 4/8 rollers
RZ01: PPS 4rollers
RZ02: PPS 3/6 rollers
Speed range - 0.1-400rpm, reversible
Speed resolution - 0.1rpm
Flow range
LM60A: 0.027-1295ml/min
LM60B: 0-161ml/min
External control
Foot pedal, RS232, RS485,
Working mode
calibration mode, continuous mode,
metering mode, booking mode
Latency time 0-999999s
Dispensing volume
Pre-settable
Dispensing time
Pre-settable
Interval time
0-999999s Pre-settable
Full speed
One button to make it full speed (filling or empty)
Power supply
DC24V±10%
Maximum power
LM60A: 30W
LM60B: 20W
Working temperature
0-40℃
Working humidity
<80% relative humidity, non-condensing
Protection grade
IP31
Ne weight
LM60A: 3.5kg (without pump head)
LM60B: 1.45kg (without pump head)
