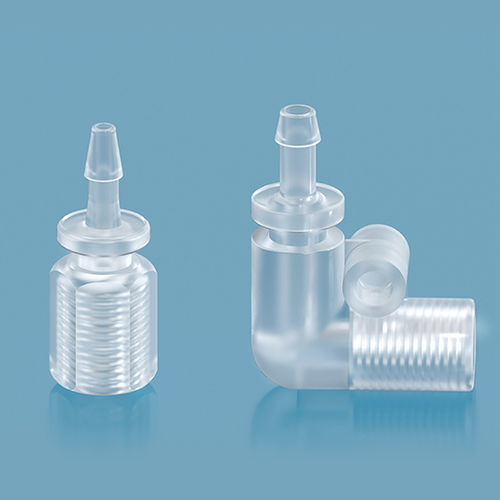

Female adapter NI06-32-28P

for medical devicesstraightelbow

These fittings are available in straight, 90 degree or elbow versions that are suitable for using in low-pressure applications. They are ideal threaded fittings to connect flexible tubing ID1.6-3.2mm with the rest of the system, with no tools needed for assembly. PP and PTFE are available and in stock, PP is suitable for non-corrosive liquid and environment while PTFE is suitable for strongly corrosive liquid and environment. Connection Steps of Barb-to-Female Adapter 1. Straight Barb to –Female Adapters / Elbow Barb to –Female Adapters, both need to match with male fittings of same thread type. 2. One-Piece Fittings Installation Steps: a. Prepare 1 pieces same male thread type flanged or flangeless fittings with tubing assembly b. Insert the assembly into the receiving ports, pushing the tubing into the port until it bottoms out. c. Finger tighten the nut into the port until snug. d. After several uses (especially at high pressure) the ferrule or flanged tube should be replaced. e. Connect the flexible tubing into the barbed end
