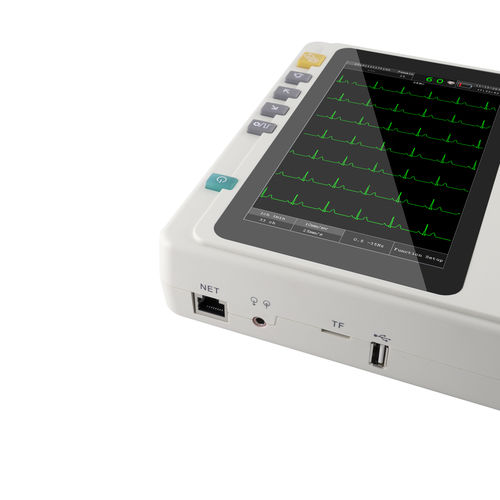

Stress test electrocardiograph ECG601

6-channeldigitalwith touchscreen

Features: 7-inch high-resolution color touchscreen 12-lead simultaneous acquisition and display ECG Automatic measurement and interpretation function Complete digital filters, resisting baseline drift, AC, and EMG interference Compact and lightweight design Support USB flash disk and micro SD card to extend memory Software upgrade via USB/SD card Built-in rechargeable Li-ion battery Lead: Standard 12 leads Acquisition Mode: Simultaneous 12 leads acquisition Measurement Range: ±5mVpp Input circuit: Floating; Protection circuit against Defibrillator effect Input Impedance: ≥50MΩ Input circuit current: ＜0.05µA Record mode: Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2; Manual: 3CH, 2CH, 3CH+1R, 2CH+1R; Rhythm: Any lead selectable. Filter: EMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz DFT Filter: 0.05 Hz/ 0.15 Hz AC Filter: 50 Hz / 60Hz CMRR: >100dB Patient leak current: ＜10µA (220V-240V) Frequency Response: 0.05Hz~150Hz (-3dB) Sensitivity: 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error:±5%) Anti-baseline Drift: Automatic Time constant: ≥3.2s Noise level: ＜15µVp-p Paper speed: 12.5 mm/s, 25 mm/s, 50 mm/s Recording mode: Thermal printing system Paper specification: Roll 110mmx20M Safety Standard: IEC I/CF Sample Rate: Normal: 1000sps/channel Power Supply: AC: 100~240V, 50/60Hz, 30VA~100VA DC: 14.8V/2200mAh, built-in lithium battery Standard Configuration: Main machine:  1 PC Patient cable: 1 PC Limb electrode:  1set (4pcs) Chest electrode: 1set( 6pcs) Power cable:  1 PC 110mm*20M recording paper: 1 PC Paper axis: 1 PC Power cord: 1 PC
