Medical industry motor ST4118
stepper

Medical industry motor - ST4118 - Nanotec Electronic GmbH & Co. KG - stepper
Medical industry motor - ST4118 - Nanotec Electronic GmbH & Co. KG - stepper
Add to favorites
Compare this product


Characteristics

Applications
medical industry
Operational mode
stepper

Description

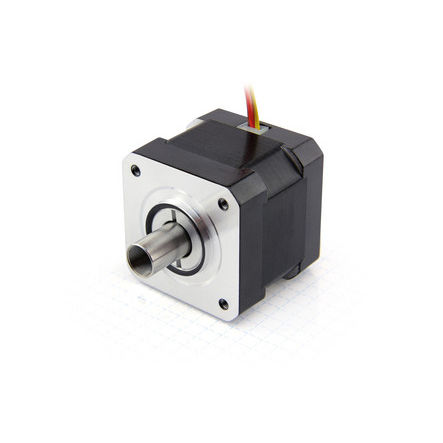

High-torque stepper motor with hollow shaft in size NEMA 17 (42 mm) and with 1.8° step angle (full step). Available in various lengths and versions. Technical Data NEMA 17 Current per Winding 1.8 A Rotor Inertia 57 gcm² Inductance per Winding 1.85 mH Length "A" 38 mm Size 42 mm Holding Torque 28 Ncm Resistance per Winding 1.1 Ohm Resolution 1.8 °/step Weight 0.24 kg
