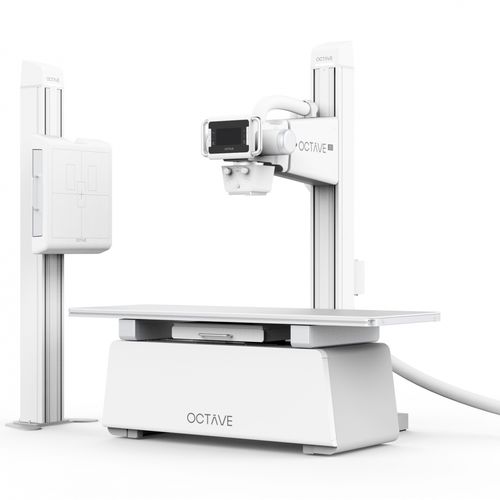

Radiography system GR10X-40K

digitalfor multipurpose radiographywith table

- height-adjustable chest bucky with smooth tracks for detector change - LED light at the top of bucky stand as status indicator - LCD display monitor - wheel controller on console for easy use - rotatable stand console handle for better mobility - slidable table with curved edges for better safety and mobility Specifications Generator Power Input 230VAC ± 10 %, 50/60 Hz 400 - 480 VAC, 50/60 Hz Generator Power Output 40kW, 1 phase ＆ 3 phrase Generator kV Range 40-150 kV Generator mA range 10-500 mA Generator mAs rang - 0.1 - 630 mAs CE Mark CE0197 Tube kV Range 40 -125 kV Tube Rotation Rotating 16° at high speed Tube Anode Heat Storage Capacity100 kJ (140 kHU) Tube Focus Small focus: 1.0 mm Large focus: 2.0 mm Collimator Power Input 24VAC, 50/60 Hz Collimator Max Tube Voltage 150 kV Collimator Light Source LED lamp 24 VAC 1A/24VDC 1A Collimator Inherent Filtration Inherent filtration 1.2 mmAl Collimator Field Size Max field size : less than 48 cm x 48 cm at SID 100 cm Tube Stand Power Input 220VAC, 50/60 Hz Tube Stand Column Rotation ± 180° with electro-mechanical detent at each 90° Tube Stand Horizontal Rotation of X-ray beam Horizontal Rotation of X-ray beam Tube Stand Travel Distance - Vertical : 1470 mm (413 mm to 1883 mm ) Longitudinal : Approx. 1700 mm (Rail 2210 mm ) Lateral :Approx. 183 mm Bucky Table Power Input 24VDC Bucky Table Size (L x W x H) Size (L x W x H) Bucky Table Max. load of Tabletop 300 kg Bucky Table Table Movable Distance Longitudinal : ± 300 mm, Transverse : ± 125 mm Bucky Table Locking System Electromagnetic lock Bucky Table Inherent Filtration 0.8 mmAl Bucky Stand Power Input 24 VDC Bucky Stand Inherent Filtration 0.5 mmAl
