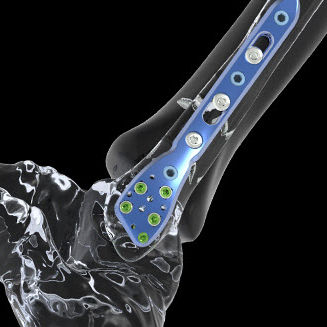

Tibia compression plate FTS1

fibulaanklemalleolus

The implants of the Activ Ankle range are intended for the fixation of fractures, osteotomies and pseudarthroses of the distal and the diaphyseal fibula, for the fixation of fractures of the medial malleolus and for the syndesmotic repair in adults. TECHNICAL FEATURES Distal & Diaphyseal Fibula 3 types of distal plates designed for different kinds of fractures, skins, bone quality and surgical techniques 2 surgical approaches: lateral and postero-lateral Optimal design reducing the risk of soft tissue irritation thanks to the rounded distal edges Dualtec System 2 technology: polyaxial holes allowing +/-10° angulation (20° cone) Distal Tibia Plate 2 types of plates: hook and standard 1 short plate using a smaller incision Optimal design reducing the risk of soft tissue irritation thanks to the rounded distal edges Dualtec System 2 and 3 technology: polyaxial holes allowing +/-10° angulation (20° cone) IMPLANTS Distal & Diaphyseal Fibula 1 symmetrical diaphyseal plate (65 mm) - Diaphyseal fixation: Ø3.5 mm locking and non-locking cortical screws, length 10 to 24 mm (2mm increment) Epiphyseal fixation: Ø2.8 mm locking and non-locking screws, length 10 to 24 mm (2mm increment) Fixation in case of syndesmosis injury: Ø3.5 mm non-locking cortical screw and Ø4.0 mm lag screw, length 40 to 70 mm (5mm increment)
