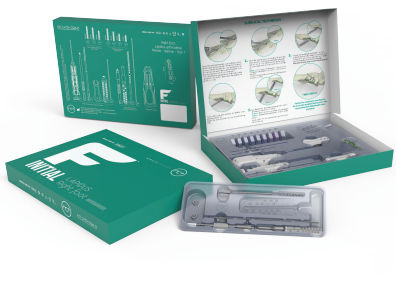

Foot surgery instrument kit INITIAL F™ LAPIDUS

sterilesingle-use

The implants of the Inital F™ Lapidus range are intended for arthrodeses, fractures and osteotomies fixation and revision surgeries of the foot in adults. IMPLANTS Initial F™Lapidus kits are available with three Plantar Lapidus Arthrodesis plates, available in right and left version: Size 0 (length: 37 mm) Size 1 (length: 42 mm) Size 2 (length: 50 mm) FIXATION Ø3.5 mm Locking screws Ø3.5 mm Non locking screws TECHNICAL FEATURES Plate Low profile plate: 1,7 mm thick, thus limiting soft tissue irritation risks while providing an optimized mechanical stability. Range of precontoured plates: the design of this implant is the result of a proprietary state-of-the-art mapping technology to establish an optimized congruence between the plate and the bone. Holes: Hole for transfixation screw Holes for converging screws in the distal and proximal areas. Ramp oblong hole, enabling a simple and controlled compression by its screwplate interface. Fixation Efficient locking: the threads under the screw head and inside the hole have strictly the same characteristics. Coaptation of both profiles during locking, limits a cold-welding risk and improves the removal properties. A single screw diameter: Ø3.5 mm. Both locking (SLT3.5Lxx) and non locking screws (RLT3.5Lxx) are available. ADDITIONAL INSTRUMENTATION KITS FLTDVx and FLTGVx templates (Additional sterile screws can be ordered separately in Supplemental Sterile Screw Caddy)
