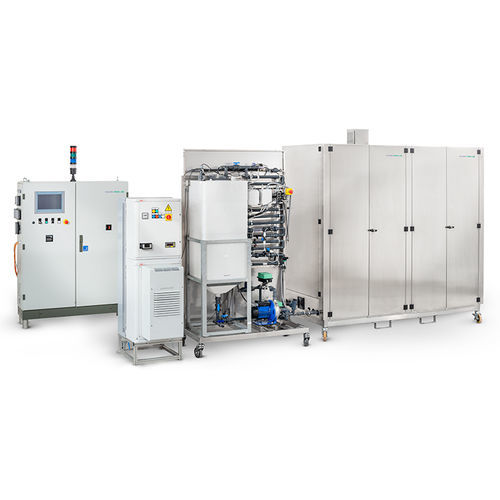

Laboratory waste treatment system PURA LAB

automaticon sitewith sterilizer

The plant is ideally suited for the needs of large centralized laboratories and external treatment plants. It employs a batch treatment process, whereby a volume of laboratory liquid waste is gathered and treated before it is discharged. The tailor made layout depends on both volume and characteristics of the fluid waste. It uses Advanced Oxidation Process (AOP), the so called Fenton process, which involves the generation of hydroxyl radicals, very powerful non-toxic oxidants that react rapidly with most organic compounds. After fluid neutralization, the solid particles precipitate and are separated from the liquid by an innovative mechanical filter. The plant is fully automated and equipped with industry 4.0 instruments. The on-board programmable logic controller (PLC) can be connected to an internet cloud service through a GSM router to carry out remote control of functions from a PC and monitor cycle statistics. The entire cycle is controlled by a PLC with a touch panel which allows to choose the best setting and program. The cycle starts automatically when the level sensor confirms the complete load of the fluid waste in the collecting tank. STAGE 1: wastewater loading Different types of fluid waste are collected in different buffering tanks. A predefined volume of fluid is automatically loaded into the reaction tank after being heated to the required temperature through a dedicated boiler, depending on the layout. STAGE 2: chemical advanced oxidation phase The fluid waste is pumped into the reaction tank. The proper quantity of Fenton reagents is added according to the chosen setting.
