3 in 1 macro channel diode laser: 755nm (optional) + 810nm + 1064nm. Conduction-cooled vertical stack
TECHNICAL SPECIFICATIONS
WAVELENGTH 755 nm (optional)/ 810 nm/ 1064 nm
TYPE OF LASER Conduction-cooled vertical stack diode laser
PACKAGING DIMENSIONS 96 x46 x 126 cm
LASER POWER 1200 Watts
LASER POWER Bar 120W/bar
SPOT SIZE 12×24 mm (1200 W)
FREQUENCY From 1 to 10 Hz
PULSE WIDTH 10 – 300 ms
ENERGY DENSITY 0-300 J/cm2
COOLING SYSTEM 3 cooling systems: TEC + water cooling + air cooling
AC POWER SUPPLY 110/220v+-10%, 50-60 Hz

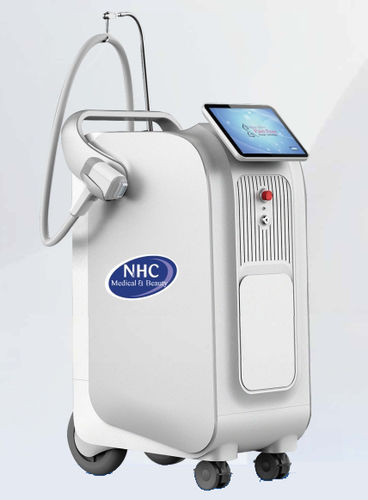

With the MAC 808HV PLUS hair removal laser we have combined the power of the 808 laser, the performance of Alexandrite at 755 nm (Optional) and the high penetration capacity of Nd:Yag at 1064 nm. In this way, the most complex hair removal cases can be treated for unprecedented results.
