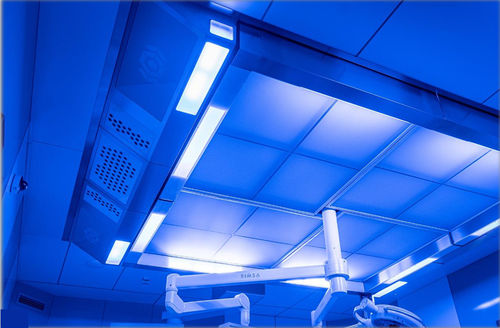

Operating room laminar flow module NICFA-5630RGB
ceilingwith illumination

Operating room laminar flow module - NICFA-5630RGB - Nicfa - ceiling / with illumination
Operating room laminar flow module - NICFA-5630RGB - Nicfa - ceiling / with illumination
Add to favorites
Compare this product


Characteristics

Applications
for operating rooms
Configuration
ceiling
Other characteristics
with illumination

Description

The lighting of the operating theatre on 2 or 4 sides occurs indirectly through a light strip positioned on the external perimeter attached to the containment grid consisting of a special aluminum body with a quickassembly glass front finish or with a bli nd finish. The light source is made up of special W or RGBW LED plates adjustable with DALI protocol and assembled with quickfit connectors. LIGHTING LAMP FEATURES • Lamp with custom lighting modules • Diffusing support in aluminum • Printed circuit with aluminum plates size 200x100mm • Power supplies 230V/24V DC 6.3A • 24V DC power supply • Plates with 90 white LEDs (5 rows of 18 LEDs each) model NICFA-5630 capable of developing about 6000lm with a consumption of approx. 50W • Option no. 54 RGB LEDs (3 rows of 18 LEDs each) model NICFA-5630RGB • Pair of cables with 2P connector with input and output for quick connection • Glass diffuser with high-resistance scratch-resistant opaque transparent surface and tempered 4mm thickness • UGR <19

Catalogs

AirFlow
AirFlow
36 Pages
