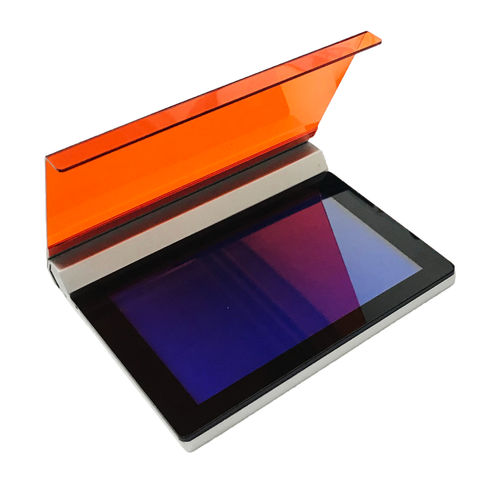

Gel documentation system transilluminator FastGene®

blue LEDwhite light

For documentation of DNA/RNA in agarose gels, protein gels and petri dishes Details FastGene® Blue/White LED Tab No damage of your DNA Detection of Green DNA Stains Portable and Easy handling Documentation of Protein gels Ideal for MIDORIGreen DNA Stains The FastGene® Blue/White LED Tab is equipped with blue LEDs. The blue LED source inside the instrument produces light with a narrow emission peak centered at approximately 470 nm, effective for the visualization of nucleic acid stains such as MIDORIGreen and SYBR® dyes. The longer wavelength lead to perfect results with the dyes mentioned above without causing damage to the DNA which are normally seen when exposing the DNA to UV-light. Ideal for Protein gels The FastGene® Blue/White LED Tab also comes with white LEDs. Hence the documentation of protein gels also possible. There is even a white plate to difuse the white light creating a homogeneously illuminated area. The illuminated area has the same size as for the blue LED light. Brightness according to your needs The FastGene® Blue/White LED Tab can change the brightness in the blue LED mode as well as in the white LED mode. Just press the brightness control button and choose one of the three possible birghtness levels.
