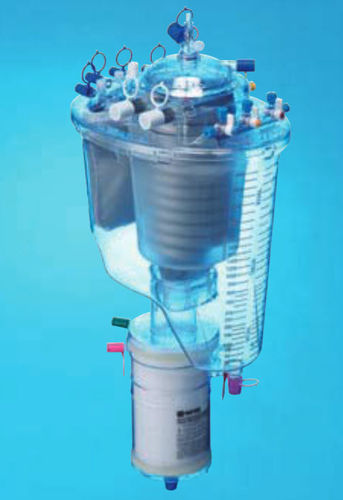

Adult extracorporeal oxygenator VITAL

•Less priming volume •Less blood damage •Innovative design of heat exchanger •Sterilization : ETO ■ Venous Reservoir with Heat Exchanger Maximum volume 4000 mL Minimum level 200 mL Venous inlet 12.7 mm (1 12') Cardiotomy reservoir inlet 9.53mm (3.8*) Suction inlet 2 pcs for 6.35 mm (1 /4*). 2 pcs for 6.35 mm (1 /4*)/9.53 mm <3 / 8*) Recirculation inlet 2 pcs for 6.35 mm (1 /4*). 2 pcs for 6.35 mm (1 /4*)/9.53 mm <3 / 8*) Quick priming inlet outlet 6.35 mm(1 /4*) Venous reservoir outlet 6.35mm(1 /4*) Venous sample port 9.53 mm (3/8*) Temperature probe port Thermistor Yellow Spring type 6.35 mm (1 / 4*) Drug inlets Luer lock type: 1 without filter and 3 with filter Cardiotomy filter Maximum flow in cardiotomy filter Maximum water pressure in Heat Exchanger Heat Exchange effective area Water inlet / outlet Hansen type Heat exchanger performance factor* 0.6 Negative / positive pressure relief valve for sealed reservoir (-200 / +65mmHg) ± 5
