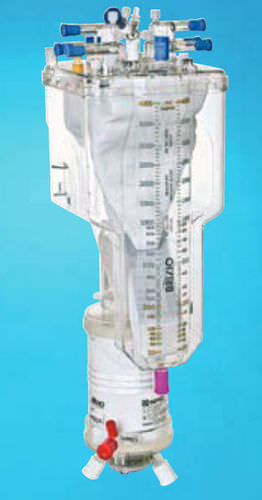

Adult extracorporeal oxygenator BRIZIO

Nipro Membrane Oxygenator and Venous Reservoir with Integrated Cardiotomy Filter Special Features •Less Priming Volume •Superior Performances •NIPRO Synthetic Coating E8 •Sterilization : ETO Venous Reservoir with Heat Exchanger Maximum volume 4000 mL Minimum level 200 mL Venous inlet 12.7 mm (1 12") Optional cardiotomy réservoir inlet 9.5 mm (3/8") Vent line 6.4 mm (1 /4") Aspirated blood inlet 6.4 mm (1 / 4") Recirculation inlet 6.4 mm (1 / 4") Fast priming inlet 6.4 mm (1 / 4") Réservoir outlet 9.5 mm (3/8") Venous sample port Luer Lock type Température probe port Yellow Spring type thermistor Drug inlet Luer Lock type Cardiotomy filter filtering element 40 pm Maximum flow in the cardiotomy filter 3 L/ min Negative/positive pressure safety valve (sealed réservoir) - 200 ± 5 mmHg + 65 ± 5 mmHg Oxygenator Chamber Priming 237 mL Maximum blood flow 7 L/min Pressure variation 180 mmHg Effective area 2.2 m2 Oxygenating chamber inlet 9.5 mm (3/8") Arterial outlet 9.5 mm (3/8") Recirculation outlet 6.4 mm (1 / 4") Gas inlet/outlet 6.4 mm (1 / 4") Arterial sample port Luer Lock type Température port Yellow Spring type thermistor Maximum water pressure in the heat exchanger 138 KPa (1000 mmHg) Heat exchanger - effective area 0.20 m2 Water inlet/outlet Hansen type Heat exchanger performance factor 4 L/min blood flow and 15 L/min water flow 0.71
