Laboratory vacuum pump VP 0140
medicalpistonoil-free

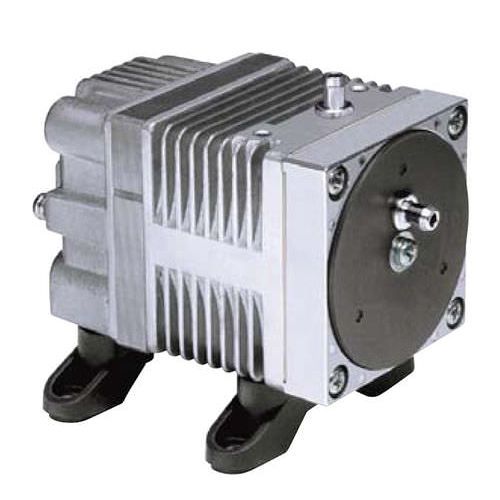

Laboratory vacuum pump - VP 0140 - Nitto Kohki Europe GmbH - medical / piston / oil-free
Laboratory vacuum pump - VP 0140 - Nitto Kohki Europe GmbH - medical / piston / oil-free
Laboratory vacuum pump - VP 0140 - Nitto Kohki Europe GmbH - medical / piston / oil-free - image - 2
Laboratory vacuum pump - VP 0140 - Nitto Kohki Europe GmbH - medical / piston / oil-free - image - 3
Laboratory vacuum pump - VP 0140 - Nitto Kohki Europe GmbH - medical / piston / oil-free - image - 4
Laboratory vacuum pump - VP 0140 - Nitto Kohki Europe GmbH - medical / piston / oil-free - image - 5
Laboratory vacuum pump - VP 0140 - Nitto Kohki Europe GmbH - medical / piston / oil-free - image - 6
Add to favorites
Compare this product


Characteristics

Applications
laboratory, medical
Technology
piston
Options
oil-free, portable
Flow

3 l/min
(0.79 us gal/min)

Power

Min.: 14 W
(0.02 hp)

Max.: 15 W
(0.02 hp)

Inlet fitting size

6 mm
(0.2 in)

Outlet fitting size

6 mm
(0.2 in)

Weight

0.7 kg
(1.5 lb)

Length

48 mm
(1.9 in)

Width

62 mm
(2.4 in)

Description

Attainable Vacuum: - -533 mbar Free Air Displacement: - 3 l/min Power Consumption: - 15 W 14 W Rated Frequency: - 50 Hz 60 Hz Life Expectancy: - 5.000 h Duty Cycle: - 60 minutes Coil Insulation Class: - E or its equivalent (JETL) and B for UL-1450 Leadwire Length: - 200 mm
