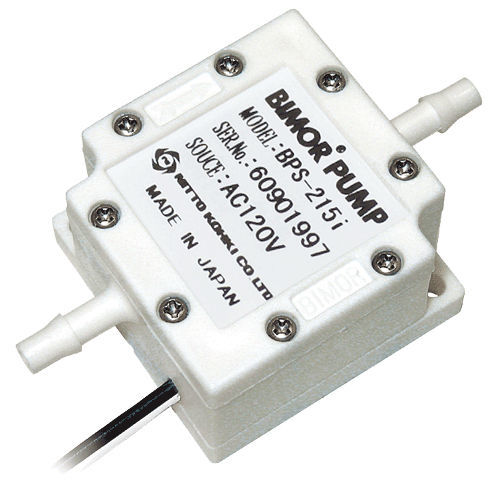

Laboratory pump BPS-215i 120V

suctiondosingdispensing

The Bimor's driving force, the bimorph, comprises two parallel piezoelectric wafers. Their nature is to expand or contract depending on the direction of the voltage. Therefore, when an alternating current is applied, one wafer expands then contracts while the other contracts then expands, causing the biomorph to bend. Repeating the cycle creates a pumping action, as the diagram below shows. Current: - 3 mA Flow Rate: - 30 ml/min Outlet Pressure: - 150 mbar Self-Priming Pressure: - 30 mbar Housing Material: - PP Bimorph Material: - PP Valve / O-Ring: - IIR Weight: - 40 g Suitable Liquids: - Chlorinated Detergents
