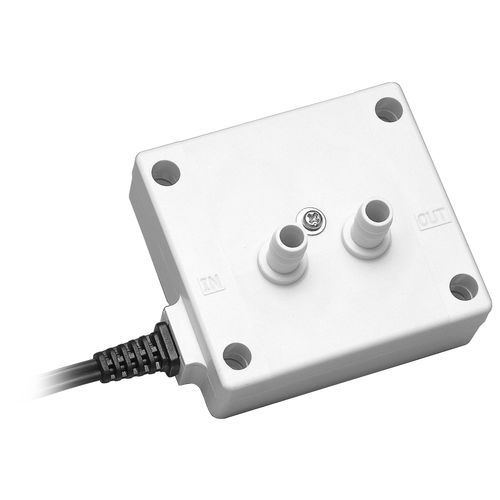

Laboratory pump BPH-214i 120Velectricwatercompact
Add to favorites
Compare this product
Characteristics
- Applications
- laboratory
- Operation
- electric
- Fluid type
- water
- Configuration
- compact
- Flow
0.35 l/min
(0.09246 us gal/min)- Pressure
Max.: 180 mbar
(2.61 psi)Min.: 80 mbar
(1.16 psi)
Description
The Bimor's driving force, the bimorph, comprises two parallel piezoelectric wafers. Their nature is to expand or contract depending on the direction of the voltage. Therefore, when an alternating current is applied, one wafer expands then contracts while the other contracts then expands, causing the biomorph to bend. Repeating the cycle creates a pumping action, as the diagram below shows.
Current: - 15 mA
Housing Material: - PP
Bimorph Material: - PP
Valve / O-Ring: - IIR
Weight: - 140 g
Suitable Liquids: - Chlorinated Detergents
Catalogs
No catalogs are available for this product.
See all of Nitto Kohki Europe GmbH‘s catalogsOther Nitto Kohki Europe GmbH products
BIMOR Piezoelectric 120 V / 60 Hz
