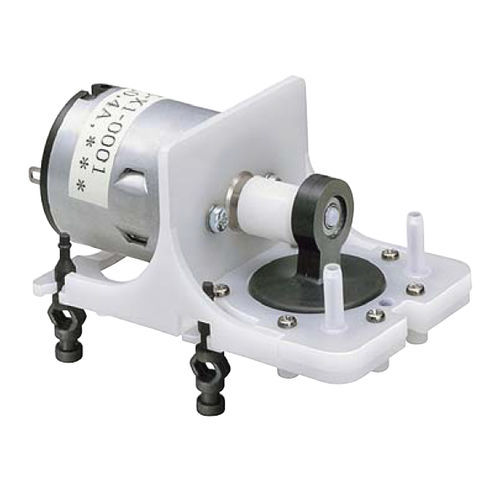

Laboratory vacuum pump DP 0125medicaldiaphragmportable
Add to favorites
Compare this product
Characteristics
- Applications
- laboratory, medical
- Technology
- diaphragm
- Options
- portable, oil-free
- Flow
2.5 l/min
(0.66 us gal/min)- Pressure
0.3 bar
(4.35 psi)- Weight
0.1 kg
(0.2 lb)- Length
32 mm
(1.3 in)- Width
32.5 mm
(1.3 in)
Description
Attainable Vacuum: - -333 mbar
Free Air Displacement: - 2.5 l/min
Maximum Current: - 0.5 A
Rated Voltage: - 12 V
Duty Cycle: - Continuous
Life Expectancy: - 200 h
Inlet and Outlet: - 3mm O.D. straight nipple
Coil Insulation Class: - E or its equivalent (JETL)
