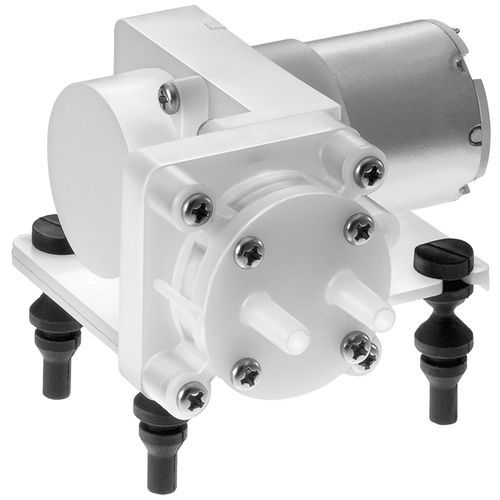

Laboratory vacuum pump DP 0140medicaldiaphragmportable
Add to favorites
Compare this product
Characteristics
- Applications
- laboratory, medical
- Technology
- diaphragm
- Options
- portable, oil-free
- Flow
4 l/min
(1.06 us gal/min)- Pressure
0.5 bar
(7.25 psi)- Inlet fitting size
5 mm
(0.2 in)- Outlet fitting size
5 mm
(0.2 in)- Weight
0.2 kg
(0.4 lb)- Length
52 mm
(2 in)- Width
36 mm
(1.4 in)
Description
Attainable Vacuum: - -533 mbar
Maximum Current: - 0.5 A
Rated Voltage: - 12 V
Duty Cycle: - Continuous
Life Expectancy: - 500 h
Inlet and Outlet: - 5mm O.D. straight nipple
Coil Insulation Class: - E or its equivalent (JETL)
