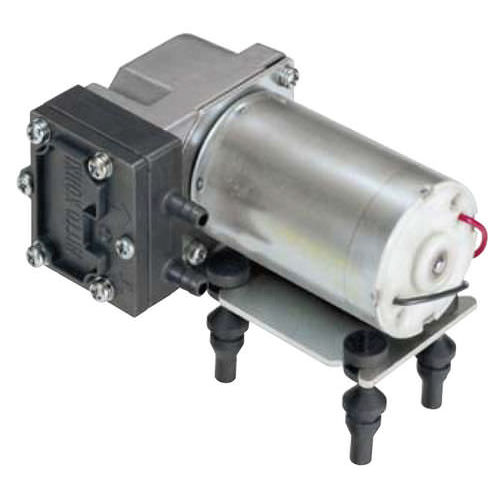

Laboratory vacuum pump DP 0105
medicalpistonoil-free

Laboratory vacuum pump - DP 0105 - Nitto Kohki Europe GmbH - medical / piston / oil-free
Laboratory vacuum pump - DP 0105 - Nitto Kohki Europe GmbH - medical / piston / oil-free
Laboratory vacuum pump - DP 0105 - Nitto Kohki Europe GmbH - medical / piston / oil-free - image - 2
Laboratory vacuum pump - DP 0105 - Nitto Kohki Europe GmbH - medical / piston / oil-free - image - 3
Laboratory vacuum pump - DP 0105 - Nitto Kohki Europe GmbH - medical / piston / oil-free - image - 4
Laboratory vacuum pump - DP 0105 - Nitto Kohki Europe GmbH - medical / piston / oil-free - image - 5
Laboratory vacuum pump - DP 0105 - Nitto Kohki Europe GmbH - medical / piston / oil-free - image - 6
Add to favorites
Compare this product


Characteristics

Applications
laboratory, medical
Technology
piston
Options
oil-free, portable
Flow

2.8 l/min
(0.74 us gal/min)

Pressure

2.5 bar
(36.26 psi)

Inlet fitting size

5 mm
(0.2 in)

Outlet fitting size

5 mm
(0.2 in)

Weight

0.4 kg
(0.9 lb)

Length

42 mm
(1.7 in)

Width

24.5 mm
(1 in)

Description

Attainable Vacuum: - -666 mbar Rated Voltage: - 12 V 24 V Maximum Current: - 1.2A or less for 12V 0.6A or less for 24V Duty Cycle: - 30 minutes Life Expectancy: - 1.000 h Coil Insulation Class: - E or its equivalent (JETL)
