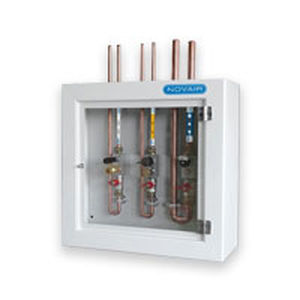

Gas valve

medical gasvacuumrelief

The area sevice valves (or secondary valves) ensures: the vacuum and pressure defaults warning the isolation of medical gas circuit connected to the hospital's piping system in case of intervention / service emergency services connection to a backup source in case of failure of the main supply source Compliant with EN ISO 7396-1 or HTM 02-01 Modular device including up to 10 valves as standard, specific configurations available upon request Compatible with all medical gases including medical air, surgical air, O2, N2O and vacuum Pipe Diameters : 10 to 54 mm Robust metallic cabinet for surface or flush mounting Glass and lockable door Gas entrance / exit by the top or the side It features a single or double configuration. In the case of a simple configuration, a relief valve can be connected if necessary. The dual configuration has automatically two valves: a main valve and a pressure relief.
