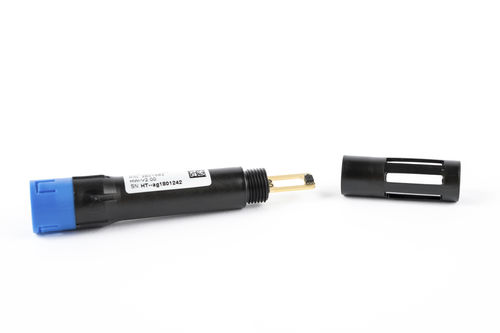

Temperature sensor nSens-HT-CSP

humiditycalibrationmonitoring

Capacitive measurement technology for standard climate control and monitoring. Digital humidity & temperature sensor with capacitive humidity sensor. Accurate readings Inexpensive universal sensor Calibration and identification data stored directly in the sensor Automatic sensor recognition Versatile connection options Specifications Dimension: - L101mm x Ø 13mm Accuracy/Measuring range: Humidity - +/- 2% 20…..80% rH Temperature - +/-0.3K -20°…+80°C Communication: - digital via nBus Factory Calibration: - at 3 humidity points and 1 temperature point. Certificate must be ordered separately. Calibration: - using nSoft-CAL software
