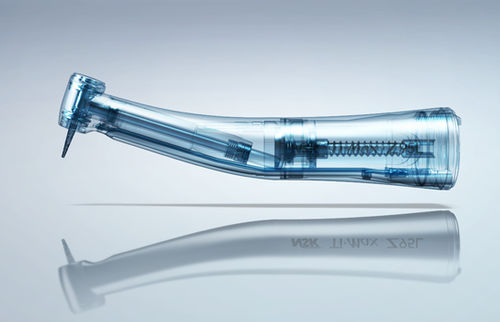

Dental contra-angle Ti-Max Z
airmultipliertitanium

dental contra-angle
dental contra-angle
dental contra-angle
dental contra-angle
dental contra-angle
dental contra-angle
dental contra-angle
dental contra-angle
dental contra-angle
dental contra-angle
dental contra-angle
dental contra-angle
dental contra-angle
dental contra-angle
dental contra-angle
dental contra-angle
Add to favorites
Compare this product


Characteristics

Applications
dental
Operation
air
Gear ratio
multiplier
Material
titanium
Spray type
with external spray
Other characteristics
autoclavable
Speed

Max.: 200,000 rpm
(1,256,637.1 rad.min-1)

Min.: 2,500 rpm
(15,708 rad.min-1)

Head height

11.8 mm, 12.3 mm, 13.4 mm, 13.7 mm
(0.5 in, 0.5 in, 0.5 in, 0.5 in)

Head diameter

8.9 mm
(0.4 in)

Description

Titanium body*. Light and very strong pure titanium is used for the body. The light handpiece reduces the burden on the hands during operations, and its enhanced hardness also improves its ability for autoclave sterilization. The biocompatible properties of titanium eliminate concern over allergies to metals. *Titanium is used only for the exterior parts, and not for the interior. Microfilter Microfilter to prevent particles from entering the water spray system to guarantee optimum water spray cooling at all times. DURAGRIP An ergonomic body shape and the introduction of new DURAGRIP coating provide superior grip and handling comfort. Clean Head System The Clean Head System has an anti-suck back mechanism that stops blood and foreign matter from entering the head from the oral cavity. As a result, the ball bearings and mechanical parts last longer. Excellent Stability Ceramic Bearings are 25% harder than conventional steel bearings but are only half the weight. Because frictional wear between the ball bearings and the bearing retainer is significantly reduced the efficiency and durability is significantly increased. (With Z95L / Z85L) Anti Heat System NSK's unique head cap design helps to limit heat generation and to disperse heat generation during treatment. NSK is always putting patient's safety first. (With Z95L / Z85L)

VIDEO

Catalogs

Ti-Max Z
Ti-Max Z
6 Pages
