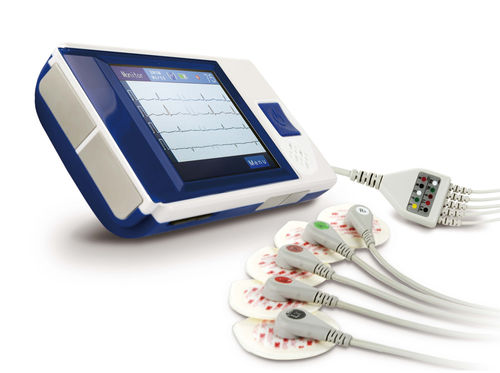

Resting electrocardiograph ER2202

4-channeldigital

1. Touch panel with one function key for easy operation 2. Portable and compact design 3. Easy, user-friendly instruction 4. 4 leads ECG recorder 5. Waveform on clearly readable 6. Large LCD display with backlight 7. Real time monitoring of pulse rate Memory : Require 2GB or more SD card Battery Type : AAA Battery x 3 Certificate : CE Dimensions 74*140*32.85 mm Weight 160g Power Source AAA*3 Data Transmit Bluetooth Operation Condition Temperature: 10 ºC ~ 40 ºC Humidity: Within 15% ~ 90% relative humidity Transport & Storage Conditionture Temperature: -20 ºC ~ +60 ºC Humidity: Below 95% relative humidity Memory 2 GB SD Card ECG Sweep Speed 25 mm/s ECG Heart Rate 30-250 bpm(± 2%) Recording Length PHC mode : 30/sec./record (max 256 records) Recording Mode 24 hr( no data compression in 2 Gbits flash memory) Data Recording ECG Waveform, Recording Time Channels 4
