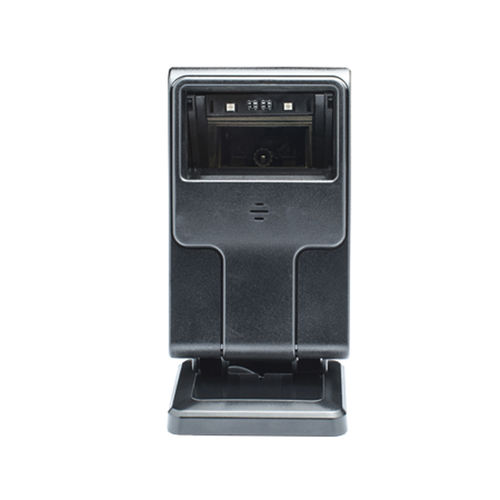

Medical barcode scanner DT-6600

2D1Dbenchtop

DT-6600 is an omnidirectional presentation imager. It provides high performance 2D CMOS imager with elegant and durable design which makes the DT-6600 suitable for point-of-sale (POS) check-out applications, reading e-barcode in marketing promotion applications, medical industry and banking industry. DT-6600 engineered to decode most of standard 1D, PDF and 2D codes easily. E-barcodes and poorly printed codes are readable. * General Interface: USB-HID / USB-COM / RS-232 Readable Codes 1D: UPC/EAN/(UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 ISBN, Code 39, Code 39 Full ASCII, Code 32/ Italian Pharmacode, Code 128, Code 93, Codeabar/ NW7, Interleaved 2 of 5, MSI, GS1DataBar, (Stacked, Limited, Expanded, Expanded Stacked) Readable Codes 2D: PDF 417, MicroPDF 417, Data Matrix, QR Code, MicroQR Code, Aztec, , MaxiCode * Optical Optical System: 648 H x 488 V pixels Light Source: Red LED Ambient Light: Maximum 100,000 Lux (Direct sunlight) Resolution: 4 mil (Code 39), 7.5 mil (Data Matrix), 5 mil (PDF417) Focusing Distance: Up to 267mm Field of View: Horizontal: 48°; Vertical: 36° Indicator: Speaker and LED * Environment Operating temperature: 0 °C to 40 °C (32ºF to 104ºF) Storage temperature: -40°C to 70 °C (-40ºF to 158ºF) Drop: 1.5m drops * Physical Weight: 305g (incl. cable weight) Dimensions: 75.91mm (W) x 70mm (H) x 142.7mm (D) Housing Material: PC + ABS plastic Cable Length: 5ft (150cm), USB Type A, RS-232 Warranty: 1 year Certificate: CE / FCC
