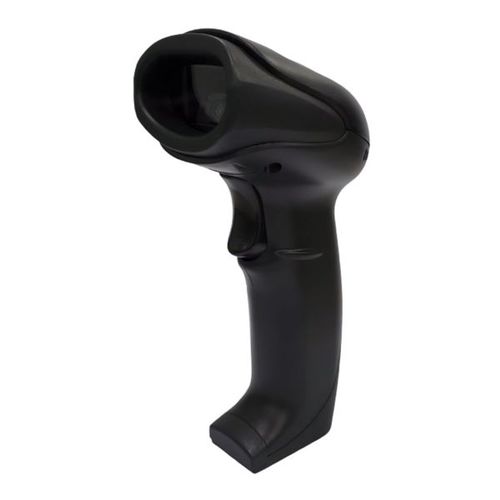

Medical barcode scanner BD-6530 ESD

2D1Dhandheld

BD-6530 ESD delivers aggressive scan performance on linear barcodes and area imaging codes. It’s ergonomic design and available with USB-KB / USB-COM / RS-232 interface. The advanced imager reads 1D and 2D barcodes displayed on a screen or printed on a label faster and farther than other standard range scanners. BD-6530 ESD is specifically to satisfy the stringent requirements of clean-rooms and static-safe manufacturing environments. * General Interface: USB-KB / USB-COM / RS-232 Barcodes supported(1D): UPC-A, UPC-E, EAN-13, EAN-8, Code 128, GS1-128, Code-39, Code-32, Code-93, Pharmacode, Codabar/NW7, MSI, Interleaved 2 of 5, GS1 DataBar-14, GS1 DataBar Stacked, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Composite Component A / B / C Barcodes supported(2D): PDF 417, MicroPDF 417, QR Code, Micro QR Code, Dara Matrix, Aztec, Maxi Code, Dot Code * Optical Optical sensor: 640 (H) x 480 (V) pixels Light Source: Aiming 610nm red LED + Illumination 6000-6500k white LED Resolution: 3 mil (Code 39), 6.67 mil (Data Matrix , QR Code) Field of View: Horizontal: 28°; Vertical: 36° Frame Rate: 120 fps PCS: 30% * Environment Operating temperature: 0℃ to 40℃ (32℉ to 104℉) Storage temperature: -40℃ to 70℃ / -40℉ to 158℉ Shock resistance: 1.5m drops * Physical Weight: 190g w/cable Dimensions: 82.5mm (L) x 66.4mm (W) x 161.3mm (H) Housing Material: ABS ESD plastic up to 10 5 – 10 9 ohms per square Cable Length: 5ft (150cm) / USB Type A or C, RS-232 Warranty: 1 year Certificate: CE / FCC
