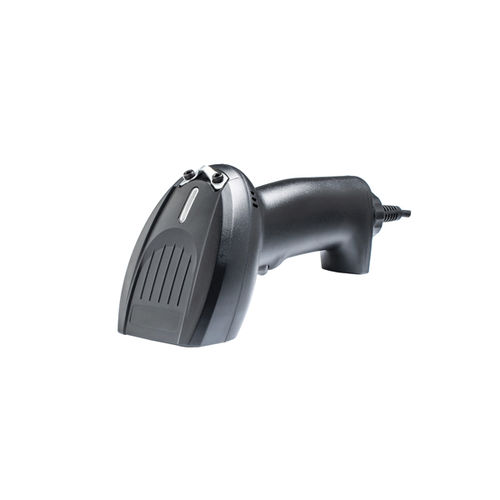

Medical barcode scanner BD-9500HD ESD

2D1Dhandheld

BD-9500HD-ESD delivers aggressive scan performance on liner barcodes and area imaging codes. It’s ergonomic design and available with multiple interface. It combines high resolution megapixel sensor for light industrial, retail, documents / billing process and banking / finance environment, health care, medical industry. It’s perfect to read 1D 3mil barcodes and 2D 5 mil barcodes. And, it is certificated by IP 54 and high performance to read on electronic display such as smart phone, tablet. * General Interface: USB-KB / USB-COM / RS-232 Barcodes Supported (1D): UPC-A, UPC-E, EAN-13, EAN-8, Code 128, GS1-128, Code-39, Code-32, Code-93, Pharmacode Codabar/NW7, MSI, Interleaved 2 of 5, GS1 DataBar-14, GS1 DataBar Stacked, GS1 DataBar Limited GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Composite Component A / B / C Barcodes Supported (2D): PDF 417, MicroPDF 417, QR Code, Micro QR Code, Dara Matrix , Aztec, Maxi Code, Dot Code * Optical Optical System: CMOS area sensor 1280 x 800 pixels Light Source: 610nm Red LED / White LED 6000- 6,500K Resolution: 3 mil (Code 39), 5 mil (QR Code) Depth of Field: 30mm - 300mm (EAN-13 3 mil) Scan Rate: 60 fps PCS: 30% Indicator: Beeper and LED * Environment Operating Temperature: 0℃ to 40℃ (32℉ to 104℉ ) Storage Temperature: -40℃ to 70℃ (-40℉ to 158℉) Relative Humidity: 10% - 95% Shock Resistance: 1.8m drops * Physical Weight: 140g Dimensions: 161.73mm (L) x 65.5mm (W) x 84mm (H) Housing Material: ABS ESD plastic Withstands ESD up to 105 - 109 ohms per square Cable Length: 180cm / USB Type: A or C, RS-232 Warranty: 1 year Certificate: CE / FCC / BSMI Sealing: IP 54
