Surgical instrument barcode scanner DT-90

laboratorymedicalfor biobanks

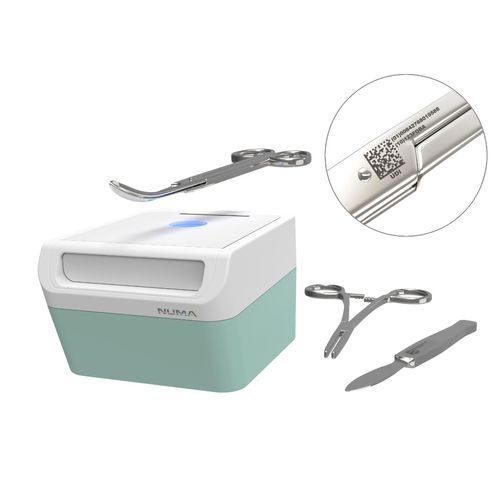

Medical Tool Reader, reading 1.8mm x 1.8mm DataMatrix on surgical instruments, high frame rate up to 120FPS The DT-90 reading system was specifically developed by NUMA to quickly and reliably identify surgical instruments by reading their DataMatrix codes. In today's medical world, efficient cost management together with patient safety and legal security are more important than ever. Identification and traceability of the products are necessary according to the UDI identificiation. The DT-90 system can easily read codes on any variety of brushed, matt or mirror finished surfaces even codes that are worn down after many washings. Regardless of the code size, the system can reliably read markings on highly curved surfaces or cylinders with small radii. Interface - USB-KB, USB-COM Barcodes Supported (2D) - DataMatrix, QR Code Optical System - 640 (H) x 480 (V) pixels Light Source - Blue LED Resolution - 1.8mm x 1.8mm DataMatrix Frame Rate - 120FPS Indicator - Beeper / LED Voltage - DC 5V Scanning Current - 230 mA Standby Current - 220 mA Operating Temperature - -20℃ to 50℃ Storage Temperature - -40℃ to 70℃ Operating Humidity - 10% - 95% RH (Non-condensing) Storage Humidity - 10% - 95% RH (Non-condensing) Drop - 1.8 M drops Light Level - 100,000 lux Weight - 216g w/o cable Dimension - 103.34mm (L) x 80mm (W) x 63.31mm (H) Housing Material - ABS plastic / Window - Tempered glass Cable - Length: 5ft (150cm) / USB Type A Warranty - 1 year Certificate - FCC / CE / UKCA / VCCI / BSMI
