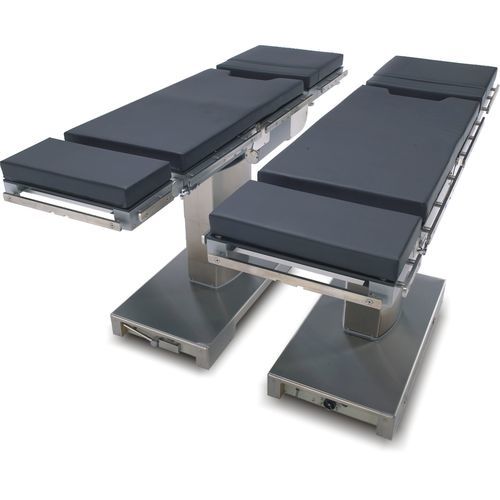

Designed to accommodate surgical procedures in nearly all fields, including urology, neurology, orthopedics, and cardiology, the Nuvo V1000 surgical table features an exceptionally sturdy, low-profile base that helps ensure maximum surgeon comfort to reduce fatigue during long procedures. With design and engineering thought through to a remarkable degree, it provides such benefits as unprecedented C-arm access, self-diagnosis with Instant Error Code display, and a control system that automatically prevents of sectional conflicts.
V1000 Features:
Powered Leg Section
Unique Shoulder Attachment
Quick Release Plate
Kidney Bridge
Sliding Top
Reverse Orientation
Slide Option
Hybrid Option
Override Controls
Perineal Cutout
Table Leveling
Proudly made in the USA
Product Specifications
Slide: 12.2 in (31cm)
Lateral Tilt: 20°
Trendelenburg: 30°
Reverse Trendelenburg: 30°
Back Section: 80° up or 50° down
Leg Section: 30° up or 90° down,
180° open to the left and right.
Head Section: 90° up or 45° down
Kidney Elevator Elevation: 0 ~ 4.7 in (12cm)
Flex: Maximum of 25° down
Reflex: Maximum of 30° up
