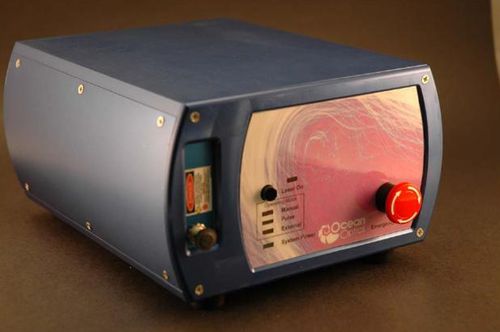

Laboratory laser module

The Multimode Spectrum Stabilized Laser Subsystem Series – Lab Versions consists of three models of continuous wave lasers designed specifically for Raman spectroscopy (see Lab Version Models ). These laser models feature an internal 350 mW spectrum stabilized laser module that contains an integral Thermo-Electric Cooler (TEC) and thermistor for monitoring the internal temperature of the laser platform. The laser has narrow spectral lines, is compact and features a hermetically sealed laser component, making it optimal for industrial and medical applications. The unit comes complete with a laser-enable switch for safety, a safety key lockout, and an emergency shut-off switch. Features The laser provides the following features: • >350 mW Fiber Coupled or SMA-coupled (-S model) Output Power • Narrow Spectral Line width of only 0.2 nm • Thermo-Electric Cooler (TEC) • Low Power consumption (< 5.5 W) Package Contents One (1) Ocean Optics Multimode Stabilized Laser One (1) Thermistor One (1) power cord Two (2) Master Power keys One (1) remote plug Overview This section provides instructions for setting up and operating the laser. Read all instructions and warnings carefully before attempting to install and operate your laser. Set-up for Operation in Internal Power Preset Mode Use these set-up instructions for the Internal Power Preset mode (Model LASER-785-IP-LAB). ► Procedure 1. Make sure that the master Power key is in the vertical (“Off’) position. 2.Connect the 120V AC power plug to the power connector on the rear of the unit. 3. Plug the other end of the power cord into a standard 110/120V electrical outlet.
