Product name -

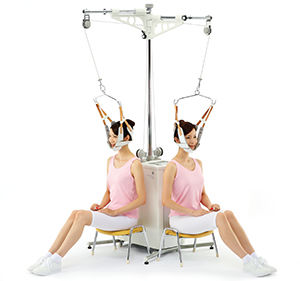

Motorized Intermittent Traction Unit ORTHO TRAC Model OL-2000
Power supply -
100V/110V/220V/230V/240V
Power input -
200VA+15% or less(100V/110V/220V/230V/240V)
Max. traction force -
970 N (99 kgf)
Traction method -
Motor drive drum winding
Traction mode -
Three kinds-Normal traction, Residual traction, Three-step traction
Treatment time setting -
Max. 99 minutes
Traction duration time setting -
0-99 seconds, continuous or in 1-second increments
Traction rest time setting -
0-99 seconds,in 1-second increments
Safety feature -
Remote emergency stop switch and aberration-detecting circuit
Dimensions -
595 x 2,715 x 2,100 (H) mm (Straight Type)
Weight -
Body and Pole 75 kg, Bed 40 kg
Standard Accessories
(Straight Type) -
Traction Bed, Pole, Arm, Middle Pulley, Stool,
Cervical Hanger, Lumbar Hanger, Cervical Sling, Lumbar Harness,
Heat Pack (for neck), And Emergency Stop Switch x 2
