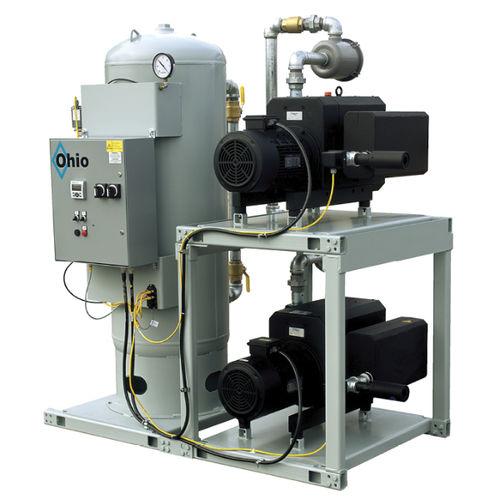

Medical vacuum system C300B-T2-H120

rotary clawoil-free

The Ohio Medical Oil-Less Rotary Claw Medical Vacuum System is fully NFPA 99 compliant for use in medical vacuum and WAGD applications. The unit consists of electric motor driven pumps, vacuum receiver, electrical control system, and interconnection piping and wiring. The components are modularly assembled to accommodate most existing doorways and designed for serviceability. The packaged unit is factory tested prior to shipment and warranted for a period of 30 months from date of shipment or 24 months from date of start-up. Vacuum Pump Module The Rotary Claw Vacuum Pumps are single stage, and air cooled. The pump design utilizes two ductile iron claw type rotors rotating in opposite direction inside a cast iron housing. The timing of the rotors are maintained by a precision gear set which is separated from the oil free pumping chamber by a combination of lip seals. The vacuum pump assembly also includes a 5 micron particulate inlet vacuum filter, vacuum regulator/relief valve, and exhaust silencer. The assembly also includes high temperature switch, check valves, pump isolation valves, a source isolation valve and flexible connectors. Vacuum Receiver The Vacuum Receiver is constructed to ASME standards, rated for full vacuum, and include a valved by-pass, manual drain valve, vacuum gauge and the National Board label. System Controls The UL listed electrical motor control system contains a fuseless design in a NEMA 12 enclosure. The “Continuous On Demand” feature stops the operation of the motors during periods of low or no demand.
