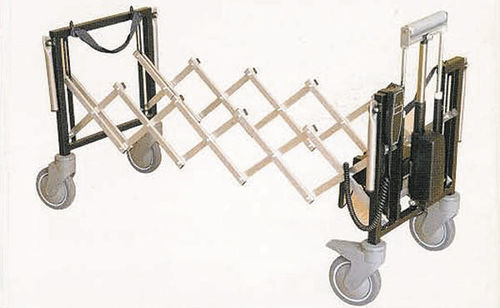

Coffin funerary trolley F010J series

transportautomaticextendable

It is a trolley that facilitates insertion of the coffer inside the hearse. By using pedals in the manual version or a remote control in the automatic version it is possible to lift the coffer to the same height as the platform. The coffer can be easily pushed into the coffin compartment by sliding it onto a roller placed on the end of the trolley. Material: Drawn iron square pipe 25x25x1.5 black colour Aluminium accordions 20x10x1 with guide reinforcements and patented opening play. Supplied: 4 swivel wheels Ø 150 of which 2 with brake with nylon fibreglass reinforced support and grey non-marking Santoprene thermoplastic rubber rings, mechanically anchored to the central body, excellent sliding characteristics. Blue coloured case Transport handles Automatic version: 2 2.7 Ah batteries 230V/24V battery charge Characteristics: Max work cycle: 10% or 6 min/hour in continuous use Room temperature +5 at +40°C Output voltage 24VDC High capacity rechargeable batteries (2.7) assure long lasting charge. Battery charging on the control unit Battery duration approx. 50/60 ascent and descent cycles.
