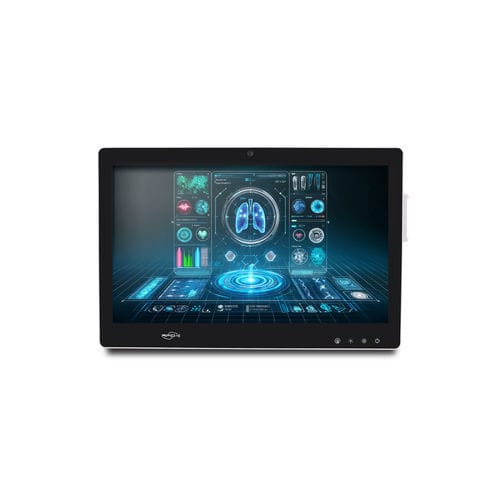

Intel® Celeron® medical panel PC SMA-1833

for intensive care servicefor medical recordsfor medical imaging

Intel® Celeron N6210/Atom x6211E /Atom x6425E Processor 18.5” High Brightness 350nits Full HD LCD Supports DDR4 SODIMM up to 32GB (optional In-Band ECC support) Proprietary PCI Express[x1] Interface Easy Cleaning Flat Screen 4 Programmable Smart Function Keys High Speed USB 3.2 Gen 1x1 Ports RFID Reader & Smart Card Reader (optional) +12V DC input Specifications Processor - Intel® Atom x6425E 3.0GHz Quad Core Processor, Intel® Atom x6211E 3.0GHz Dual Core Processor, Intel® Celeron N6210 2.6GHz Dual Core Processor System Memory: Supports DDR4 SODIMM up to 32GB (optional In-Band ECC Support ) OS Support: Windows® 10 and 11, Linux (Optional) Expansion Interface: M.2 2230(E-key) x 1, Proprietary PCIe[x1] x1(Optional) Storage Disk Drive: M.2 2242 (B-key) SATA SSD x 1 2.5" SATA SSD x 1(Optional) Security: TPM2.0,RFID Reader (optional) Function Key: LCD Brightness Up/Down, Touch Screen On/Off Wireless Communication: 802.11 a/b/g/n/ac/ax + BlueTooth 5.3 (Optional) Speaker: Built in Speaker (3Wx2) Power Requirement: DC 12V Display Size - 18.5" TFT LCD Type - AHVA/ADS Max. Resolution - 1920x 1080(FHD)/1366x 768(WXGA) Luminance(cd/m2)(Typ.) - 350nits / 250nits Max. Colors - 16.7M View Angle - 178˚(H)/178˚(V) /170˚(H)/160˚(V) Contrast Ratio - 1000:1 Back Light Life Time - >50,000 hours / >30,000 hours Touch Screen - Capacitive Multi-Touch I/O USB - USB 3.2 Gen 1x1 x4 Serial Port - RS-232 x 1 Ethernet - Gigabit LAN x2 (Isolated x1 + non-isolated x1) Video Out - HDMI 2.0b x1 Mechanical and Environmental Power Consumption - Full loading:66Watts Operating Temperature - 0°C ~40°C( 32°F ~104°F) Storage Temperature - -20°C ~ 60°C(-4°F ~ 140°F) Mounting - VESA 75/100 mm
