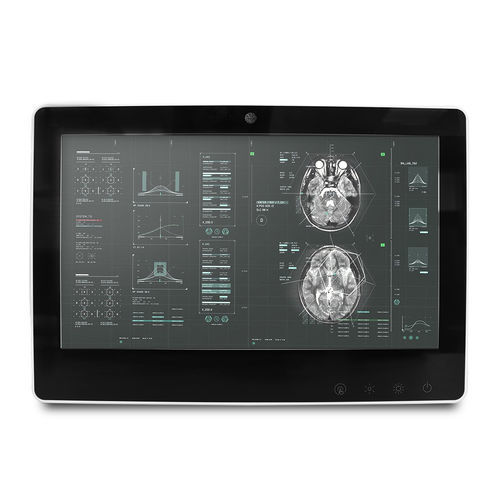

Intel® Celeron® medical panel PC SMA-1233

for intensive care servicefor medical imagingall-in-one

Intel® Celeron N6210 / Atom x6211E / Atom x6425E Processor 11.6” 250-nit WXGA /300-nit FHD LCD Supports DDR4 SODIMM up to 32GB (optional In-Band ECC support) Capacitive Multi-Touch Screen Proprietary PCI Express[x1] Interface Easy Cleaning Flat Screen 4 Programmable Smart Function Keys USB 3.2 Gen 1x1 Ports 2.0M/5.0M Pixels Camera with Mic (optional) HDMI 2.0b Port for 2nd Display RFID Reader (optional) +12V DC input / Power over Ethernet(optional)/Power Sourcing equipment (optional) Main Specifications Processor Intel® Atom x6425E 3.0GHz Quad Core Processor, Intel® Atom x6211E 3.0GHz Dual Core Processor, Intel® Celeron N6210 2.6GHz Dual Core Processor System Memory Supports DDR4 3200 SODIMM up to 16GB ( In-Band ECC with Atom x6211E) Expansion Interface M.2 2230(E-key) x 1, Proprietary PCIe[x1] x 1 Storage Disk Drive M.2 2242(B-key) SATA SSD x1 Security TPM2.0, RFID Reader(optional) Wireless ommunication 802.11 a/b/g/n/ac/ax + Bluetooth 5.3 (optional) Speaker - 2W x 2 Function Key - LCD Brightness Up/Down, Touch Screen On/Off Power Requirement - DC 12V / Power over Ethernet (optional) OS Support - Windows 10, Windows 11 , Linux Display Type - AHVA / TN Max. Resolution - 1920 x 1080 / 1366 x 768 Luminance(cd/m2)(TYP) - 300 nits / 250 nits Max. Colors - 16.7 M /262K View Angle - 178(H)/178(V) / 90(H)/60(V) Contrast Ratio - 800:1/500:1 Back Light Life Time - > 30,000 hours/ > 15,000 hours Touch Screen - Capacitive Multi-Touch I/O USB - USB 3.2 Gen 1x1 x4 Serial Port - RS-232 x 1 Ethernet - Gigabit LAN x2 (isolated x1 + non-isolated x1) Audio - HDMI 2.0b x 1 Mechanical and Environmental Power Consumption - Full loading: 43.5 Watts
